Devantech SRF04 Ranger
Last Modified: 2009-11-12
find:

basket

Acroname Robotics PDF webpage version Devantech SRF04 Ranger PDF

Related
Products

Product image for Devantech SRF08 Range Finder
Devantech SRF08 Range Finder
Product image for Devantech SRF10 Ranger
Devantech SRF10 Ranger
Product image for Devantech SRF05
Devantech SRF05
Product image for Devantech SRF02 Sensor
Devantech SRF02 Sensor
Product image for Devantech SRF485 Sensor
Devantech SRF485 Sensor
Product image for Devantech SRF01 Ranger
Devantech SRF01 Ranger
Product image for Devantech SRF235
Devantech SRF235
Product image for 3 Conductor Cable w/ Connector
3 Conductor Cable w/ Connector
Product image for 4 Way Cable
4 Way Cable

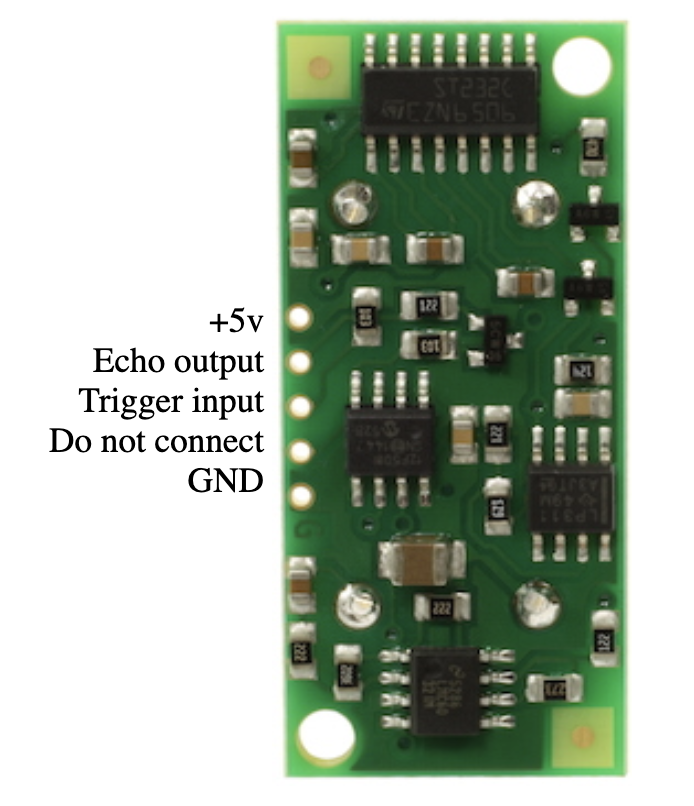

Product Image of Devantech SRF04 Ranger
RoHS icon
To Your Basket
Ordering Information
Part Number:R93-SRF04
Price:$29.50
Weight:0.03 lbs

This is a fantastic ultrasonic ranger that has an approximate range of 3" to 10'. This ranger has a logic line used to trigger a pulse and the echo is returned on a second line. Minimal power requirements and a compact, self contained design make this one of our most popular detectors.

More Details:

Our SRF info page allows you to compare the Devantech Sonic Range Finders.

This high performance ultrasonic range finder is compact and measures an amazingly wide range from 3cm to 3m. This ranger is a perfect for your robot, or any other projects requiring accurate ranging information. This sensor connects to the digital I/O lines of your microcontroller. To see our interface examples to many popular controllers, refer to the related links at the bottom of this page. You can also get a Lynxmotion SRF04 Housing for your ranger.

Specifications
Voltage5.0V
Current30mA Typ. 50mA Max
Frequency40kHz
Max Range3 meters
Min Range3 centimeters

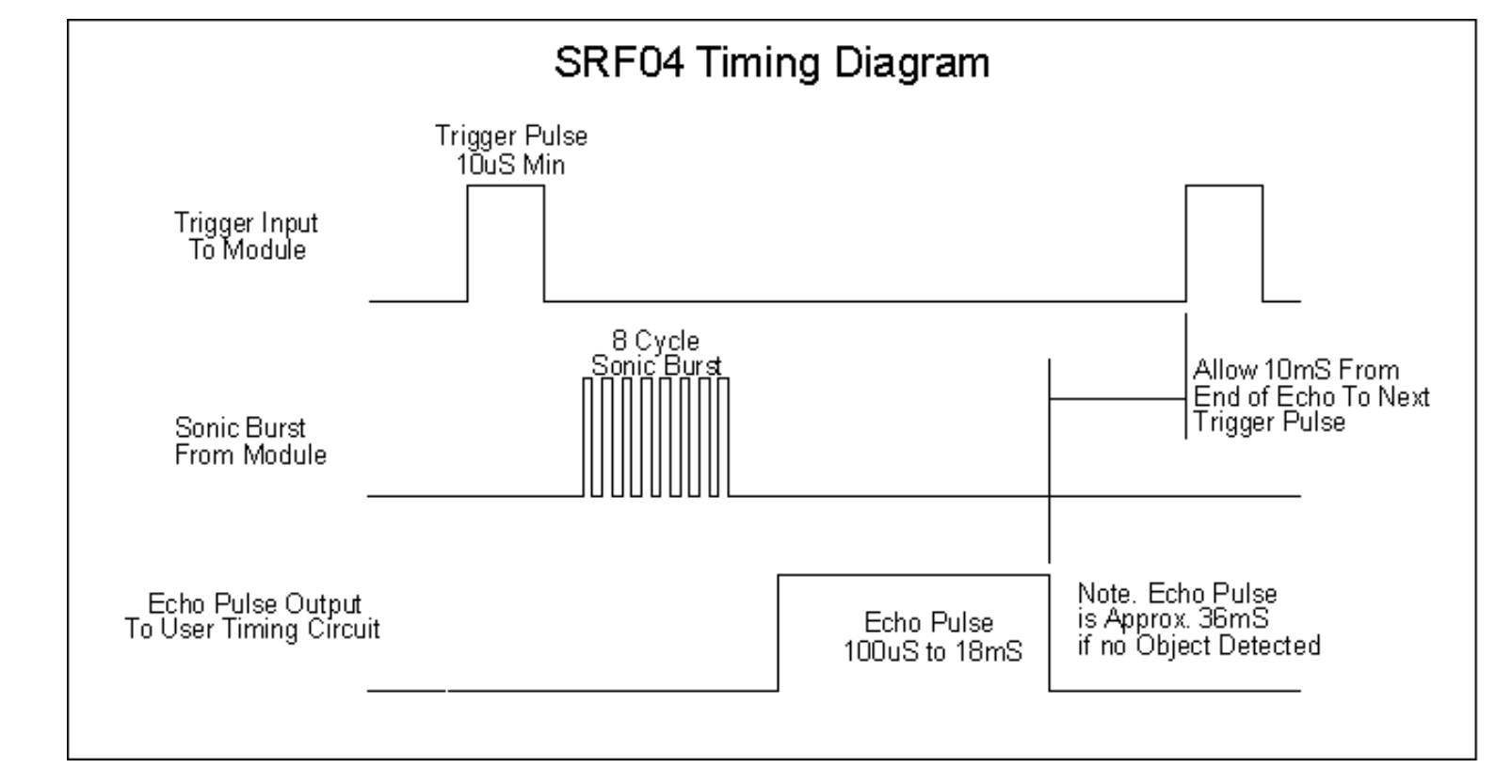

Input Trigger10uSec minimum, TTL level pulse
Echo PulsePositive TTL level signal, proportional to range
Weight0.4 oz
SensitivityDetect a 3cm diameter stick at > 2 m

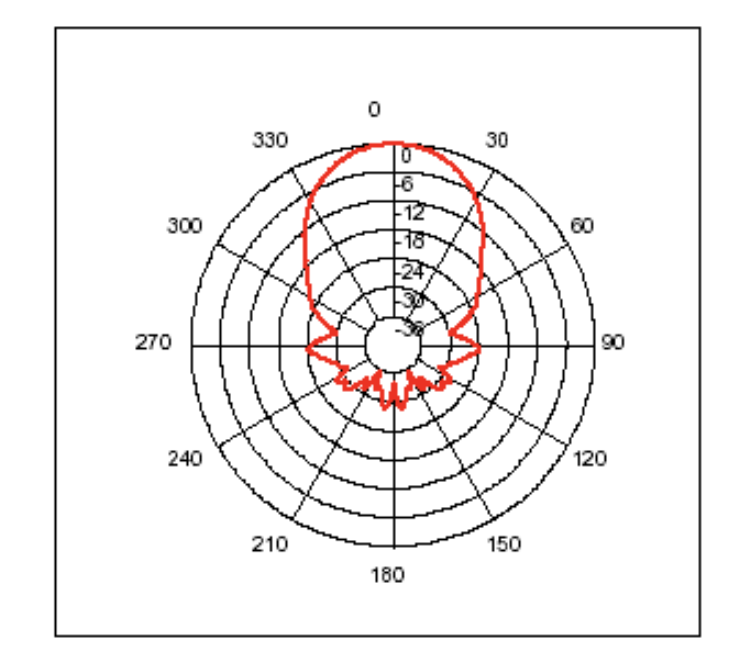

Beam Pattern:

Dimensions:

All dimensions in inches and approximate.

Dimensions of SRF04

Additional Information:

Additional application notes, schematics, and tech support can be found at Robot Electronics.

Product
Resources

Icon for igs file
3D IGIS CAD file
Icon for pdf file
Parallax information on Stamp interface issues


Related Links:

Evaluations: The Devantech SRF05

Articles: Acroname Tips and Advice for Trinity Fire Fighting Contest

John Piccirillo (2006) Robotics miniFAQ For Beginners

Sonar and IR Ranging with the Atmel AT90S8515 Idea

The Devantech Sonic Range Finders Comparison and Examples

Examples:

Devantech SRF04 Sonar Interface to BASIC Stamp II Example

Devantech SRF04 Sonar Interface to a Handyboard Example

Example code and schematic for Devantech SRF04 sensor interface to BrainStem GP

Example code and schematic for Devantech SRF04 sensor interface to an OOPic
